ISPnub - Stand-alone AVR programmer module

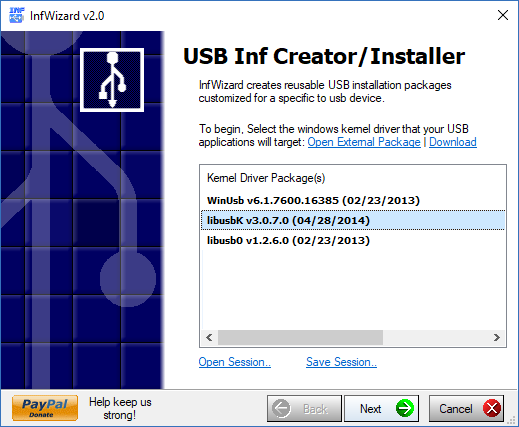

Download this libusb package: link. Open it (with 7zip for example) and extract the libusb-1.0.dll file from the /mingw64/bin/ folder to the C: Program Files GIMX folder. Install the libusbk driver as explained below. Note: the libusb-1.0.dll file will be replaced after updating GIMX. Perform the above steps again to keep using libusbK. The correct driver was libusbK (v3.0.7.0). After installing libusbK USBasp came back to life! Electronics Software Tutorial. So, you can download it from. LibusbK verson information structure: KLSTDEVCOMMONINFO: Common usb device information structure: KLSTDEVINFO: Semi-opaque device information structure of a device list: KLSTPATTERNMATCH: Device list/hot-plug pattern match structure: KSTMCALLBACK: Stream callback structure: KSTMINFO: Stream information structure: KSTMXFERCONTEXT.
USBasp is OpenSource, it's free!Like it? You can support via PayPal:
Features
- Works under multiple platforms. Linux, Mac OS X and Windows are tested.
- No special controllers or smd components are needed.
- Programming speed is up to 5kBytes/sec.
- SCK option to support targets with low clock speed (< 1,5MHz).
Download
Firmware and circuit
The following packages include circuit and firmware.usbasp.2011-05-28.tar.gz (519 kB) TPI support, supports programmers with ATMega88 and ATMega8.
usbasp.2009-02-28.tar.gz (260 kB)
Libusbk Driver Download Torrent
usbasp.2007-10-23.tar.gz (172 kB)usbasp.2007-07-23.tar.gz (176 kB)
usbasp.2006-12-29.tar.gz (118 kB) Supports programmers with ATMega48 and ATMega8.
usbasp.2006-09-16.tar.gz (116 kB) New VID/PID!
usbasp.2005-11-14.tar.gz (175 kB)
usbasp.2005-07-03.tar.gz (166 kB)
usbasp.2005-04-21.tar.gz (169 kB)
Please refer to Readme.txt for details on building, installing and using USBasp.
Drivers
On Linux and MacOS X no kernel driver is needed. Windows requires a driver for USBasp. Please use this driver installation tool for Windows (see also: successful setup on Windows 10):Zadig - USB driver installation made easy
Software
- AVRDUDE supports USBasp since version 5.2.
- BASCOM-AVR supports USBasp since version 1.11.9.6.
- Khazama AVR Programmer is a Windows XP/Vista GUI application for USBasp and avrdude.
- eXtreme Burner - AVR is a Windows GUI Software for USBasp based USB AVR programmers.
Hardware
Schematic
Partlist
| Partnumber | Value | Reichelt No |
|---|---|---|
| C1 | 4,7u | RAD 4,7/35 |
| C2 | 100n | X7R-5 100N |
| C3, C4 | 22p | KERKO 22P |
| D1, D2 | 3V6 zener | ZF 3,6 |
| CON1 | USB-B | USB BW |
| CON2 | 10pol | WSL 10W |
| IC1 | ATmega8-16 | ATMEGA 8-16 (not programmed!) |
| JP1, JP2 | 2pol 2,54mm | SL 1X36G 2,54 |
| LED1 | 3mm LED green | LED 3MM 2MA GN |
| LED2 | 3mm LED red | LED 3MM 2MA RT |
| Q1 | 12Mhz | 12,0000-HC49U-S |
| R1, R2 | 68 | 1/4W 68 |
| R3 | 2,2k | 1/4W 2,2k |
| R4, R5, R6, R7 | 270 | 1/4W 270 |
| R8 | 10k | 1/4W 10k |
| R9, R10 | 1k | 1/4W 1k |
| M1, M2 | Jumper | JUMPER 2,54GL SW |
| M3 | Socket 28S | GS 28-S |
| M4 | Case | TEKO 10007 |
| M5 | PCB | - |
User PCB layouts
Here is a list of tested PCB layouts. If you have designed your own PCB, please let me know.Driver Downloader
| usbasp_single_side.t3001.zip by Thomas Fischl Single-Side PCB, TARGET 3001! layout file Size: 90x40 mm (optimized for case Hammond 1591ATBU) | |
| lv_usbasp.tar.gz by Pawel Szramowski (11/2007) With Low-voltage front-end. Single-Side PCB, EAGLE layout files, some SMD components | |
| by Bernhard Walle Double-Side PCB, EAGLE layout files, part list with order numbers for Reichelt.de and Conrad.de Size: optimized for case Hammond 1591ATBU | |
| http://thomaspfeifer.net/atmel_usb_programmer.htm by Thomas Pfeifer Single-Side PCB, PDF layout files, SMD components | |
| by Tomasz Ostrowski Single-Side PCB, PDF and EPS layout files, only four 0805 SMD parts, rest discrete components | |
| USBasp_CH.zip by Christian Heigemeyr Single-Side PCB, with some SMD 0805 components, PDF-files With additional buttons for reset and disconnection of the target | |
| USBasp.sch, USBasp.pcb ComponentSide.pdf, TopSide.pdf, Schematics.pdf by Zhurov Pavel Single-Side PCB, P-CAD 2002 format and PDF files Crosspiece TXD and RXD are added for the ISP connector | |
| usbasp_gr.rar by J.A. de Groot The board is single sided (EAGLE format), measures 3 by 8 cm and uses only regular components. | |
| usbasb_mg.zip by Matthias Görner Single-Side PCB, eagle-format, with PS/PDF-files integrated sockets for target chips ATmega8 and ATmega32 | |
| Tarball with layout by Hannes Östlund Doubleside-Side PCB, SMD components, very small | |
| by Sergiy Bogdancev (01/2010) 3.3V version, ATMega48 only. Single-side PCB, ExpressPCB layout format + socket board for varies AVRs. Without future serial interface, chip initially must be programmed with another programmer. | |
| Eaglefiles (sch/brd) and CAD case design (dxf) by Hans Hafner, HTL Mössingerstrasse-Klagenfurt, Österreich, hans.hafner (at) htl-klu (dot) at (01/2010) CNC-milled case (DXF file available), Eagle layout, only a few SMD parts | |
| Different USBasp versions: Easy to built non-smd, smd version and a very small USBasp by Sven Hedin (01/2011) Eagle files available. | |
| USB Key AVR Programmer by Fabio Baltieri (09/2011) Very small USB key like dimensions. SMD parts. | |
| AVR ISP Programmer by Jaroslav Vadel (04/2012) Small programmer. SMD parts. | |
| Target project and PDFs (layout/schematics) by Marius Schäfer (09/2013) | |
| tinyUSBboard with USBasp-compatible firmware by Stephan Bärwolf (04/2014) | |
| USBasp on breadboard with socket for controller daughter boards. by Fabian Hummel (11/2018) | |
| Tjaart van Aswegen designed an SMD board: DIP TRACE and GERBER files. by Tjaart van Aswegen (09/2019) | |
| Feature rich (e.g. different voltage levels, integrated USB to serial converter, USB-C connector) USBasp compatible design. AVR Programmer Github project. by Brian Pepin (12/2019) | |
| USBasp with ZIF socket and through hole components. KiCad design on Github by Bruno (04/2020) | |
| USBasp board with additional 6pin header and selectable target supply (3.3V/off/5.0V). by Marty E. (10/2020) | |
| John included a 40 pin universal socket which takes 8, 14, 20 and 28 pin devices. He also added a versatile crystal oscillator with outputs of 1, 2, 4, 8 and 16 Mhz to clock the chips. There is also the standard 6pin ICSP connector and a user led connected to the MOSI pin. by John P. (11/2020) |
Links
http://www.obdev.at/products/avrusb/ Firmware-only AVR USB driverhttp://libusb.sourceforge.net/ libusb
http://libusb-win32.sourceforge.net/ LibUsb-Win32
http://www.nongnu.org/avrdude/ AVRDUDE - AVR Downloader/UploaDEr
Zadig is a Windows application that installs generic USB drivers, such as WinUSB, libusb-win32/libusb0.sys or libusbK, to help you access USB devices.
It can be especially useful for cases where:
- you want to access a device using a libusb-based application
- you want to upgrade a generic USB driver
- you want to access a device using WinUSB
Note:'libusb-based' above means an application that uses either libusb, libusb-win32 or libusbK.
Download
Updated 2020.03.28:
- Zadig 2.5 (4.9 MB)
Libusbk Driver Download Windows 7
System Requirements:
Windows 7 or later.Windows XP and Windows Vista are NO LONGER SUPPORTED
Libusbk Driver Download Torrent
.Usage
Download the executable and run it — no installation is necessary.
If elevation is required, you will be prompted for it.
An usage guide for Zadig is available HERE.
Libusbk Driver Download Pc
The executable is digitally signed and the signature should state: 'Akeo Consulting'
Libusbk Driver Download Windows 10
Frequently Asked Questions (FAQ)
A Zadig FAQ is available HERE.
To provide feedback, report a bug or request an enhancement please use the github issue tracker. Or you can send an e-mail.
License
Gbm software driver download for windows 8. GNU General Public License (GPL) version 3 or later.
You are free to distribute, modify or even sell the software, insofar as you respect the GPLv3 license.
Zadig is based on libwdi which uses an LGPL version 3 or later license.
The executable is produced in a 100% transparent manner, from its public source, using a Visual Studio environment.
Changelog
- Version 2.5 (2020.03.28)
- Fix
.catgeneration for some user directories with non western characters - Fix update check
- Improve error reporting
- Embedded drivers: WinUSB v6.1.7600.16385, libusb-win32 v1.2.6.0, libusbK v3.0.7.0 & usbser (native)
- Fix
Source Code
- libwdi 1.3.1 source (320 KB). Includes Zadig in the examples directory.
- Alternatively, you can clone the git repository using:
- For more information, see the github project.
